  • FS-6967-1G Liftable Steer Axle Control Box W/ Dump Control
SKU: FS-6967-1G

Liftable Steer Axle Control Box W/ Dump Control

Control Box; Loaded

Back

Product Specifications

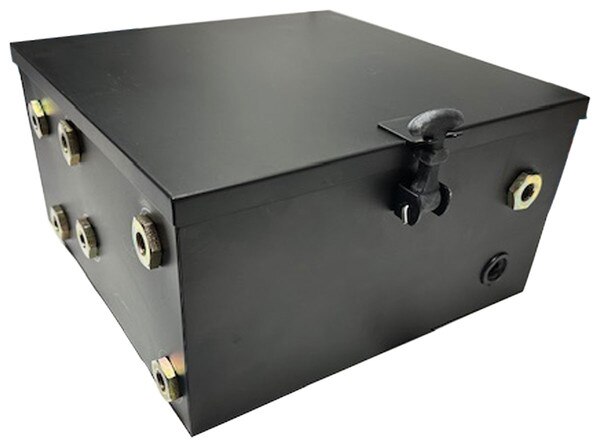

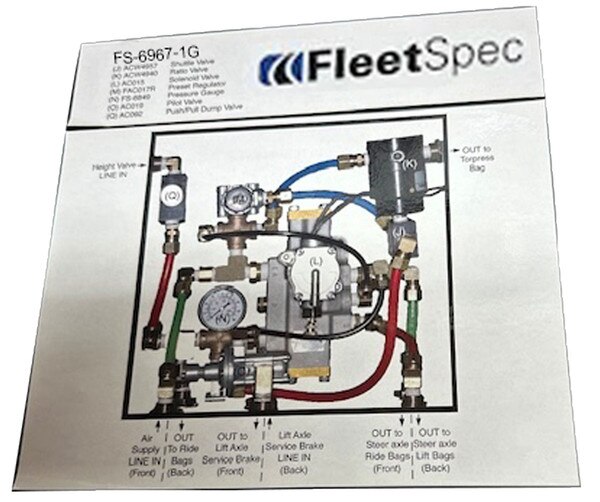

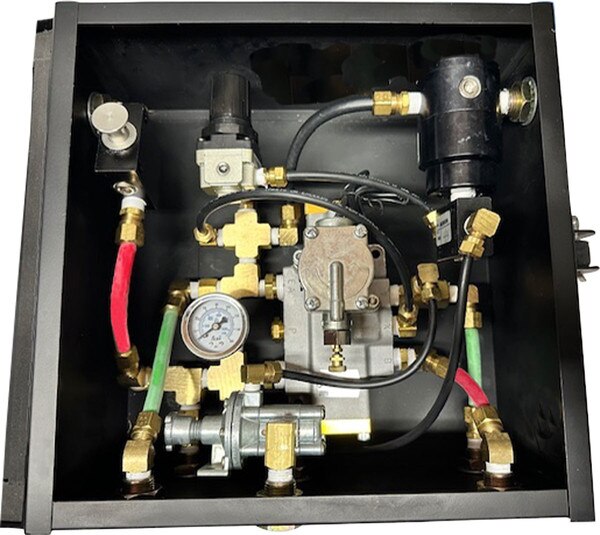

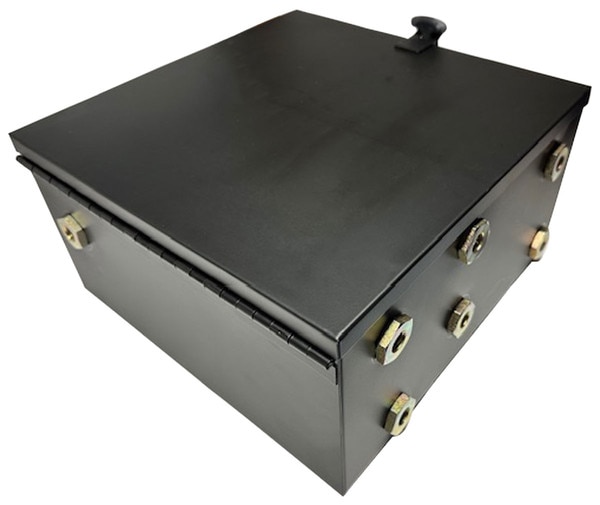

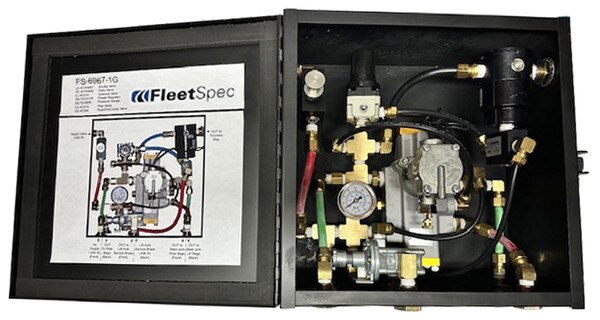

FS-6967-1G Liftable Steer Axle Control Box with Dump Control


  • With Auto Torpress Regulator
  • Minimum pre-set regulator @ 25 PSI
  • Manual valve to dump & reload air from Primary & Steer Axle Air Springs
  • Lockout valve eliminates tire damage when the lift axle is up (Lift Axle wheels turn freely)
  • Suspension Height Control Valve controls the Air Ride pressure for ALL Axles, including the liftable Steer Axle


(Replaces Ride-Air RA016SRP-32)

SKU: FS-6967-1G
